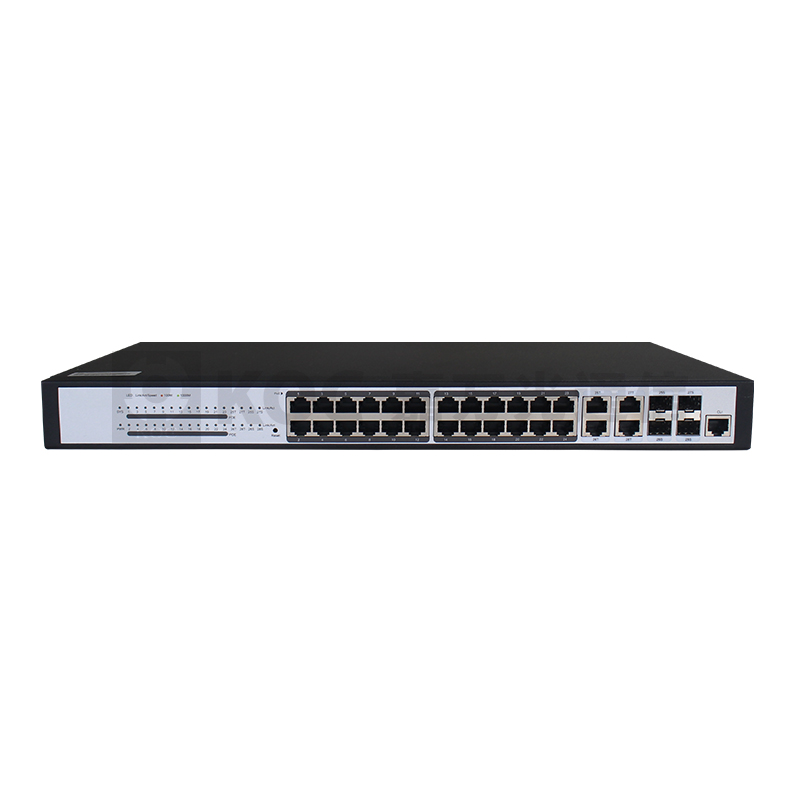

Carrier-Level Ethernet Access Switch

S2500-P Series supports the carrier-level Ethernet-ring protection protocol with less than 50ms recovery time , STP/RSTP/MSTP, backup uplink ports, and LACP link aggregation to cater to the requirements of high reliability of carriers;

S2500-P Series has powerful ACL functions to access and control L2-L7 data based on physical port, providing carriers flexible and various policy control methods;

S2500-P Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;

S2500-P Series supports various L2 multicast functions such as IGMP-snooping, fast-leave and MVR to fully meet the operation requirements of carrier’s IPTV.

Intelligent PoE+

S2500-P Series supports IEEE 802.3AF/AT PoE standard, and power mapping scales up to a maximum of 370W of PoE+ power;

S2500-P Series supports PoE non-stop power supply. The PoE+ power is maintained during a switch reload;

S2500-P Series supports manual and dynamic PoE power allocation;

S2500-P Series supports up to 2KV thunder-proof of the PoE port and power supply;

Enhanced QoS

S2500-P Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority, better streamlining carrier’s services;

S2500-P Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, ensuring the line speed forwarding of each port;

S2500-P Series supports multiple queue schedule algorithms such as SP, WRR and “SP + WRR”;

Security+

Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP- related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.

Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+.

S2500-P Series supports storm/multicast/unicast limit, ensuring the normal running of equipment in harsh network conditions.

S2500-P Series supports perfect ring detection mechanism, ensuring the long-term stable running of network.

S2500-P Series supports port isolation within the same VLAN, DHCP-Snooping, and IP + MAC + Port binding.

Easy Management and Maintenance

S2500-P Series supports many management modes such as the CLI, Telnet, SSH, SSL and SNMP;

S2500-P Series supports the WEB management mode, which is easy and efficient for installing and debugging the device;

S2500-P Series supports FTP,TFTP and SFTP;

S2500-P Series supports ISSU (In-Service Software Upgrade);

S2500-P Series supports SNMP and BDCOM NMS smart network management platform. The combination realizes automatic equipment discovery, network topology management, equipment configuration management , performance data statistics and analysis and trouble management;

S2500-P Series supports Zero Touch Provisioing(ZTP) function to minimize manual operator intervention and helps reduce customers’ initial deployment costs.

Product Specifications

VLAN

• 4K Active VLAN

• QinQ & Selective QinQ

• GVRP, Private VLAN

• Voice VLAN

Spanning Tree

• 802.1D (STP)

• 802.1W (RSTP) and 802.1S (MSTP)

• BPDU guard, root guard and loopback guard

Multicast

• IGMP v1/2/3

• IGMP Snooping

• IGMP Fast Leave

• IGMP Filter

• MVR

IP

•Static route

•RIP, OSPF

•512 routing table

•IP v4/v6 dual stack

•DHCP Server/Client/Relay

Certification

CE, FCC, ROHS

QoS

•CAR, HQoS, MAC/IP/TCP/UD- P/VLAN/COS/DSCP/TOS based

•QoS,802.1P/DSCP priority relabeling, SP, WRR, and “SP+WRR”,

•Tail-Drop, WRED, flow monitor- ing and traffic shaping.

Security

•Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky, DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,

•IEEE 802 .1x , Radius and Tacacs+

•L2/L3/L4 ACL flow identifica- tion and filtration Anti-attack from. DDoS, TCP’s SYN Flood, UDP Flood, etc.

•Broadcast/multicast/unknown unicast storm-control

•MD5, SHA-256, RSA-1024, AES256, etc.

Reliability

• Static/LACP link aggregation, Interface backup

• EAPS and ERPS

• ISSU

Management

• Console, Telnet , SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON

• TFTP, FTP, SFTP

• NTP

• ZTP(Zero Touch Provision- ing)SPAN, RSPAN

Accessories

• Power cord, rackmount kits, console cable, anti-slipping pad

Environment

• Operating temperature/ humidity: 0ºC -50ºC, 10%-90% non-condensing

• Storage temperature/humidity: -20ºC -70ºC, 5%-95% non-condensing

Ordering Information
