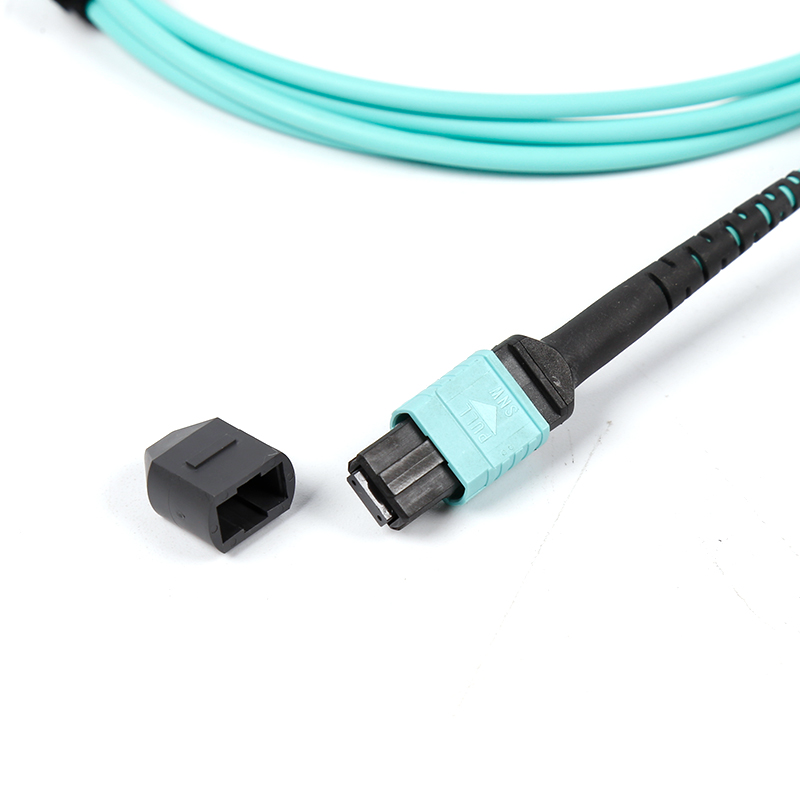

MPO Connector

The MPO connector offers up to 24 times the density of standard connectors, providing significant space and cost savings. Having many type to be chosed, for example 12/16/24 ferrule type, round/flex boot type...

Specification Download

@Email to Sales

Features

• IEC 61754-7 Compliant

• Compact design, up to 24 fiber ribbon

• Polishing does not require diamond film

• Precision molded MT ferrule

• Telcordia GR-1435-CORE compliant

• Low insertion loss and back reflection loss

• High precision guide pins for exact alignment

Application

• CATV, and Multimedia

• Gigabit Ethernet

• Industrial and medical

• Active device interface

• Premise installations

• Interconnection for O/E modules

• Data processing networks

• Telecommunication networks

• Optical switch interframe connection

• Asynchronous Transmission Mode (ATM)

Availability

• 12/16/24F MT ferrule

• Single mode/Mutimode

• Round/Flex/Bare boot type

• Low loss/standard loss

• Male/female

Specifications

Item	Single Mode(APC)	Multimode(PC)
Insertion Loss	12/16/24F standard loss≤0.75dB 12/16F low loss≤0.35dB 24F low loss≤0.5dB	12/16/24F standard loss≤0.75dB 12/16F low loss≤0.35dB 24F low loss≤0.5dB
Return Loss	≥60dB	≥20dB
Durability	<0.3dB typical change, 200 matings	<0.3dB typical change, 200 matings
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C

MPO Connector.pdf
