Features
· Good mechanical and environmental characteristics.
· Flame retardant characteristics meet the requirements of relevant standards.
· The mechanical characteristics meet the requirements of relevant standards.
· Soft, flexible, easy to lay and splice, and with big capacity data transmission.
· Meet various requirements of market and clients.
Application
· Used in indoor cabling, especially used for FTTH.
· Used as access building cable.
Options
· Fiber Type: G.652, G.655, G.657 single-mode fiber, A1a or A1b mulit-mode fiber, or other types of fiber.
· Jacket Material: Polyvinylchloride(PVC), Low smoke zero halogen(LSZH), Thermoplatic polyurethane(TPU), or other contracted material.
· Fiber Count: Total number of fibers in the cable.
· Jacket color: (including color of fiber)meets the requirements of relevant standards, or other contracted color.
· Cable Dimension: The nominal cable dimension or other contracted dimension.
· Delivery Length: 1KM or 2KM or other contracted length.
· Other Requirements: Other contracted special requests.
Specifications
Fiber Cable Count | Dimension (mm) | Cable Weight (kg/km) | Tensile(N) Long Term Short Term | Crush(N/100mm) Long Term Short Term | Min.bend Radius(mm) Dynamic Static | Range of LongTemperature(°C) |

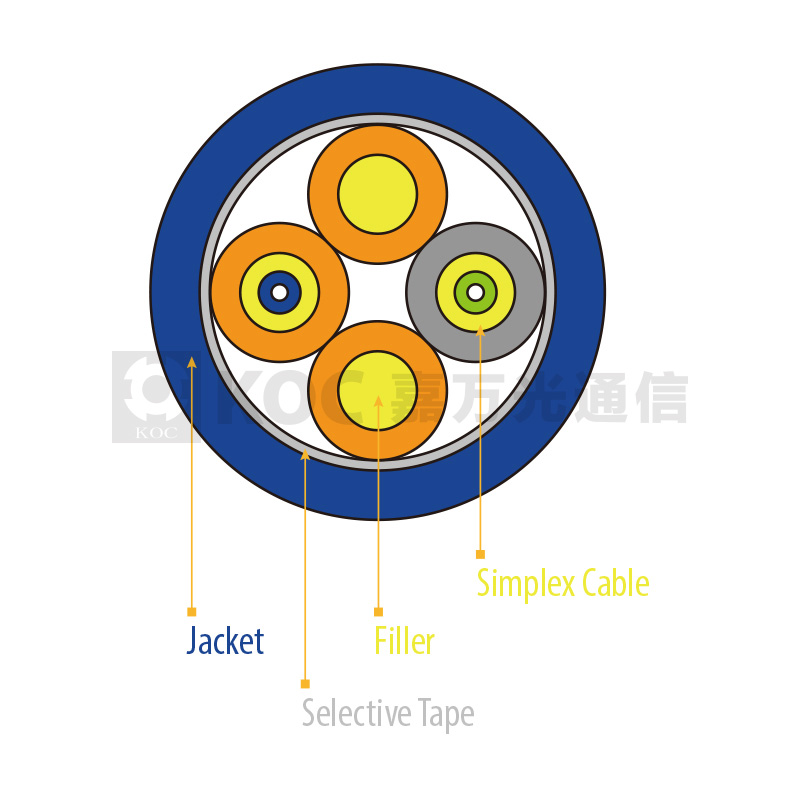

Duplex Round Far Transmission Cable I |
2 | 7 | 43 | 200 | 400 | 500 | 1000 | 20D | 10D | 20°C ~ +60°C |
Note:1 The cable dimension and weight are in accordance with the simplex cable of 2.0mm outer diameter
Note:2 D is outer diamensionof the round cable
Note:3 The minimum bend radius(static)is 5D when G.657 fiber is used
