MTP/MPO Optical Loopback

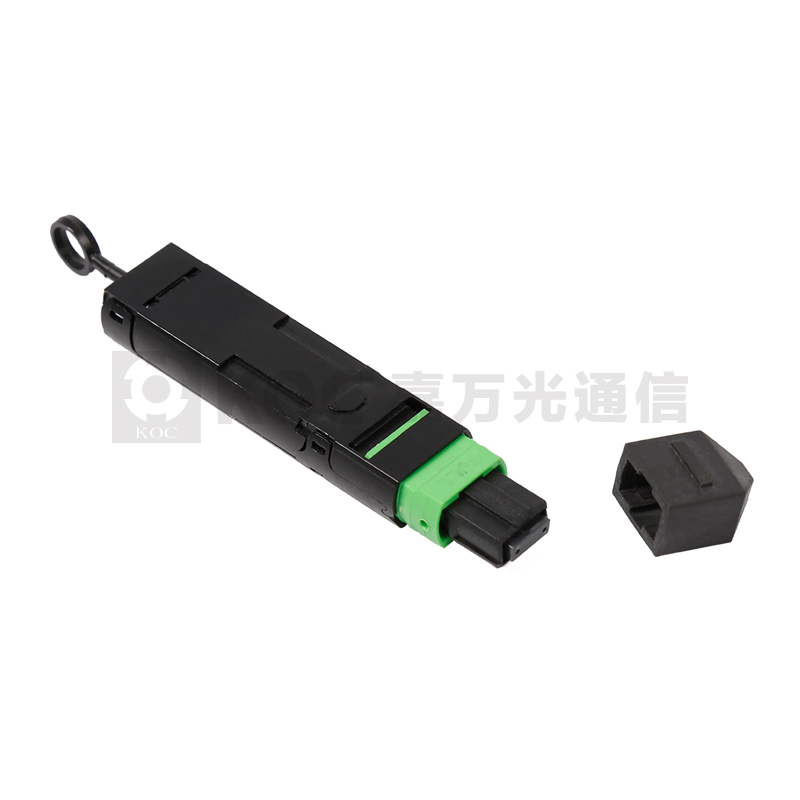

MPO Loopback used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces.

Specification Download

@Email to Sales

Features

• SM, MM available

• Polarity Type available

• 12 or 16 Fiber for 40G and 100G

• Female and Male MTP/MPO option of Connectors

• Factory Terminated and Tested

• MTP/MPO Interface feature superior optical and mechanical properties

• TIA/EIA-568-C.3 and IEC-61754-7 compliance

• RoHS compliant

Specifications

Item	Parameter
Fiber Count	12 / 16 Fibers
Fiber Type	SM: G657A2, MM: BI OM3/BI OM4
Polishing Type	APC or PC
Housing	MPO / MTP
Housing Color	MM (Beige), OM3 (Aqua), OM4(Purple), SM (Green), SM(Yellow)
Insertion loss	SM<1.5dB, MM<1.0dB
Return Loss	SM>55dB, MM>30dB
Operating Temperature	-40°C ~ 85°C
Dimension	60x20x6.5mm (LxWxH)

Order Information

Male/Female	Polarity Type	Fiber Count	Fiber Type	Polishing	Housing	Housing Color
M = Male	A = Type A	12	SM (G657A2)	A = APC	O = MPO	G = Green
F = Fmale	B = Type B	16	MM (OM3 BI)	P = PC	T = MTP	A = Aqua
	C = Type C		MM (OM4 BI)			B = Beige
						P = Purple
						Y = Yellow
