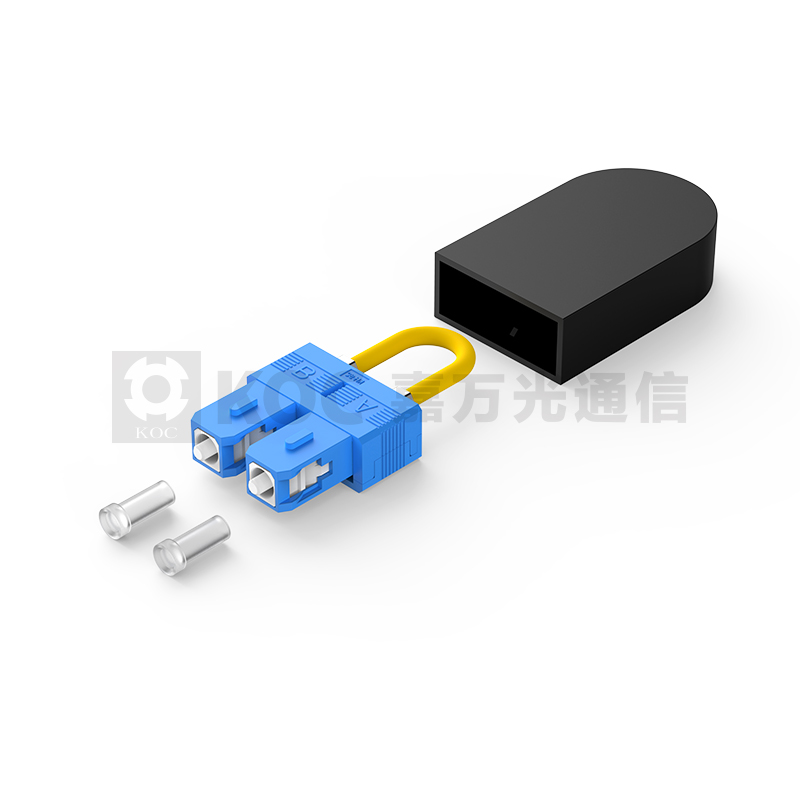

SC Optical Loopback

Optical loop back is used to test the signal backtransmission in the system or network system, and can detect various potential anomalies in the network link through the backtransmission signal.This detection is widely used and provides an effective detection method to ensure the normal network link.

Specification Download

@Email to Sales

Features

• Single mode or Mutil mode can be chosed

• PC or APC can be chosed

• Good interchangeability and pluggability

• ROHS Compliant

• Loop back cable for many test applications

Application

• FTTH application

• Various test equipment

• Data processing networks

• Wide Area Networks (WANs)

• LANS

• System debugging

Specifications

Optical Performance	Single Mode	Multi Mode
Insertion Loss	≤1.0dB	≤0.6dB
Return Loss	≥50dB(PC)	≥30dB(PC)
	≥60dB(APC)
Repeatability	≤0.20dB
Durability	≤0.2dB typical change, 1000 matings
Operating Temperature	- 20 ~ +70°C
Storage Temperature	- 40 ~ +85°C

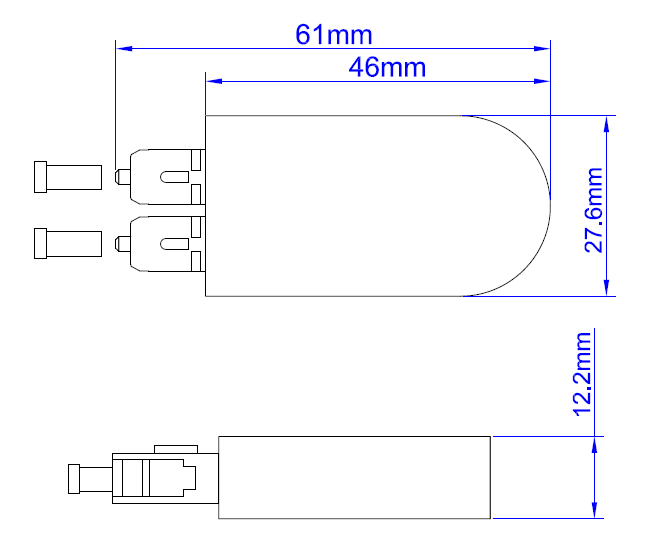

Housing packing size	46x27.6x12.2mm

SC Optical Loopback.pdf
